Product Description

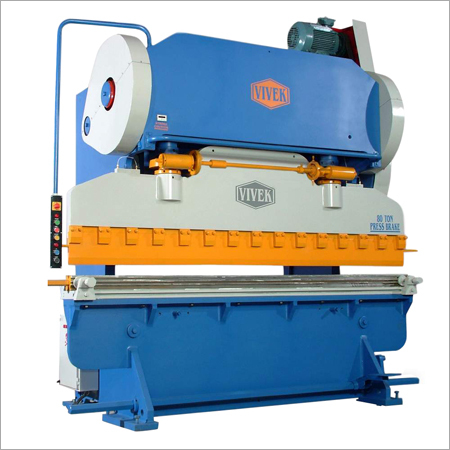

Our years of domain experience has enabled us to emerge as a successful manufacturer and exporter of standard quality Pneumatic Press Brake Machine.This steel plate made Pneumatic Press Brake Machine is known for its durable structure, advanced lubrication system, smooth functioning and long functional life. The RAM and bed of this machine have been developed by using finest grade steel plates with different thickness level. The alloy steel made gears and pinions of this machine have key role in enhancing its working speed and transmission of torque. The clutch and brake assembly of this machine is useful for its start and stop functions.
Technical Specification :
| Model | Tonnage | Clear
Dist.
Between
Housing | Bending
Cap. In
(MS) L.Xt | Main Motor
H.P./KW. | Ram Adj.
Elec.
Motor
H.P./KW. | Stroke
Per Minute | Stroke Of Ram Mm. | Ram Adj. Mm. | Shut Height Ram Stroke Down | Depth Of Throat Mm. | Overall Dimension In Mm |
| Length
(A) | Breadth
(B) | Height
(C) |
| VPB - 1 | 25 | 120 | 2030X1.6 | 5/3.7 | 1/0.75 | 30 | 50 | 40 | 200 | 240 | 2300 | 1150 | 2300 |
| VPB - 2 | 65 | 1220 | 2030X4 | 7.5/5.6 | 1.5/1.0 | 30 | 75 | 75 | 220 | 300 | 2300 | 1150 | 2300 |
| VPB - 3 | 80 | 1700 | 2540X4 | 10/7.7 | 1.5/1.0 | 30 | 75 | 75 | 220 | 300 | 2900 | 1500 | 2850 |
| VPB - 4 | 100 | 1700 | 3125X4 | 15/11.2 | 2/1.5 | 25 | 75 | 75 | 275 | 300 | 3400 | 1800 | 3400 |
| VPB - 5 | 100 | 1700 | 2540X5 | 15/11.2 | 2/1.5 | 25 | 75 | 75 | 275 | 300 | 2900 | 1800 | 3400 |
| VPB - 6 | 125 | 1700 | 3125X5 | 20/15 | 2/1.5 | 25 | 75 | 75 | 275 | 300 | 3400 | 1800 | 3400 |
| VPB - 7 | 120 | 1700 | 2540X6 | 20/15 | 2/1.5 | 25 | 75 | 75 | 275 | 300 | 2900 | 1800 | 3400 |
| VPB - 8 | 150 | 1900 | 3125X6 | 25/18.7 | 2/1.5 | 25 | 75 | 75 | 275 | 300 | 3400 | 1800 | 3400 |
| VPB - 9 | 200 | 1900 | 3125X8 | 30/22.5 | 2/1.5 | 20 | 75 | 75 | 275 | 300 | 3400 | 2000 | 3600 |
| VPB - 10 | 230 | 2250 | 3650X8 | 40/30 | 3/2.2 | 20 | 100 | 150 | 360 | 300 | 4250 | 2150 | 3900 |
| VPB - 11 | 255 | 2250 | 4000X8 | 40/30 | 5/3.7 | 20 | 100 | 150 | 360 | 300 | 4570 | 2150 | 4000 |
Note :
- All Dimensions are in m.m.
- Specifications are subject to change
- Power Supply : 400 / 440 V., 3 Phase, 50 Hz
Built to handle demanding sheet metal applications, this pneumatic press brake delivers up to 100 tons of pressing capacity. Its sturdy closed-frame welded construction enhances stability during operation, ensuring high-quality results for both mild and stainless steel. The adjustable ram speed and stroke length allow for fine-tuned control to suit diverse bending requirements.
Versatile Customization and ControlsThe machine offers a bending length range from 1250 mm to 4000 mm and features manual or motorized ram adjustments as well as motorized/manual back gauge options, facilitating accurate setups for different job sizes. With a push button control panel and indicator lamps, operators can efficiently manage processes. Optional customization of dimensions is available as per client specifications.
Safety and Operational ExcellenceEquipped with mechanical interlocks and an emergency stop switch, the press brake prioritizes operator safety. Its semi-automatic grade automation and reliable control systems make it suitable for both novice and experienced operators. Powder-coated or painted finish protects the equipment from corrosion, promoting longevity and easy maintenance.
FAQ's of Pneumatic Press Brake Machine:
Q: How does the adjustable ram speed benefit the sheet metal bending process?
A: The adjustable ram speed, typically ranging from 8 to 12 mm/sec, allows operators to precisely control the pressure and speed applied during bending. This ensures accurate shaping of both mild and stainless steel sheets while minimizing the risk of material deformation or tool wear.
Q: What is the recommended operating pressure for this pneumatic press brake machine?
A: The machine is designed to operate optimally within a pressure range of 6-8 Bar. Maintaining this pressure range ensures efficient performance and helps protect internal components for longer operational life.
Q: When should operators use manual versus motorized ram adjustment?
A: Manual ram adjustment is suitable for quick, small-scale setups or when fine-tuning is required. Motorized adjustment is recommended for handling repeated, large-scale jobs as it offers consistent positioning, greater convenience, and improved efficiency.
Q: Where can this machine be used and what materials is it suitable for?
A: This pneumatic press brake is ideal for use in sheet metal fabrication workshops, manufacturing plants, and industrial facilities across India. It is suitable for bending and forming both mild steel and stainless steel sheets.
Q: What safety features are incorporated to protect operators?
A: Operator safety is prioritized through features such as mechanical interlocks, an emergency stop switch, and a control panel with indicator lamps. These systems help prevent accidental machine operation and allow immediate halting in emergencies.
Q: How customizable are the dimensions and specifications of this press brake?
A: The machine's dimensions and certain specifications like bending length, width, and height can be customized to match the client's project requirements, with typical sizes around 2500 x 1450 x 2400 mm.
Q: What accessories are provided with the pneumatic press brake?
A: Standard accessories supplied include die sets, a foot switch for hands-free operation, front sheet supports, a back gauge, and an electrical control panel, ensuring efficient and safe machine use.
